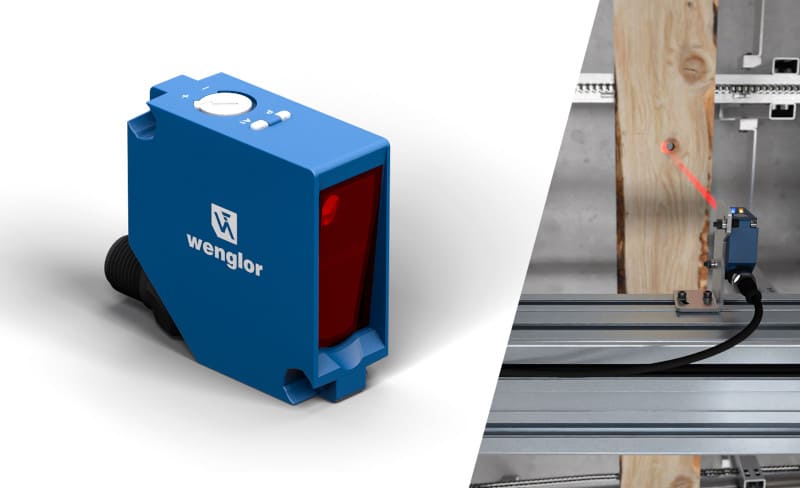

The wenglor sensoric group is introducing the new P1PH9 reflex sensor, designed for the dependable detection of objects at extended ranges. The P1PH9 sensors utilize time-of-flight technology along with visible red LED light to detect objects at distances reaching 2,500 mm.
With the expanded light spot, presence checks can be conducted for objects of various shapes. The coordinated dynamic regulation of the emitted light intensity guarantees dependable switching. Furthermore, the strong interference immunity ensures that the reflex sensors are resilient to surrounding light, reflections, and impurities.
The P1PH9 reflex sensors impress first and foremost due to their large detection range for the reliable detection of a wide range of objects. Black surfaces are also reliably detected by the red LED light, even if the objects are irregularly shaped or have perforations.
P1PH9 sensors are highly immune to interference such as ambient light, background reflections, contamination and dust. IO-Link 1.1 enables quick and easy parameterization and access to process data. The switching distance can be easily adjusted using the potentiometer. The higher detection range and the 1P format with a rotating plug allow for flexible mounting options.
The Highlights at a Glance:
- Reliable object detection at long distances with time-of-flight
- Detection range of up to 2,500 mm
- Dynamic adjustment of the emitted light brightness
- Red LED light with large light spot
- Immune to interference
- IO-Link 1.1 and potentiometer
