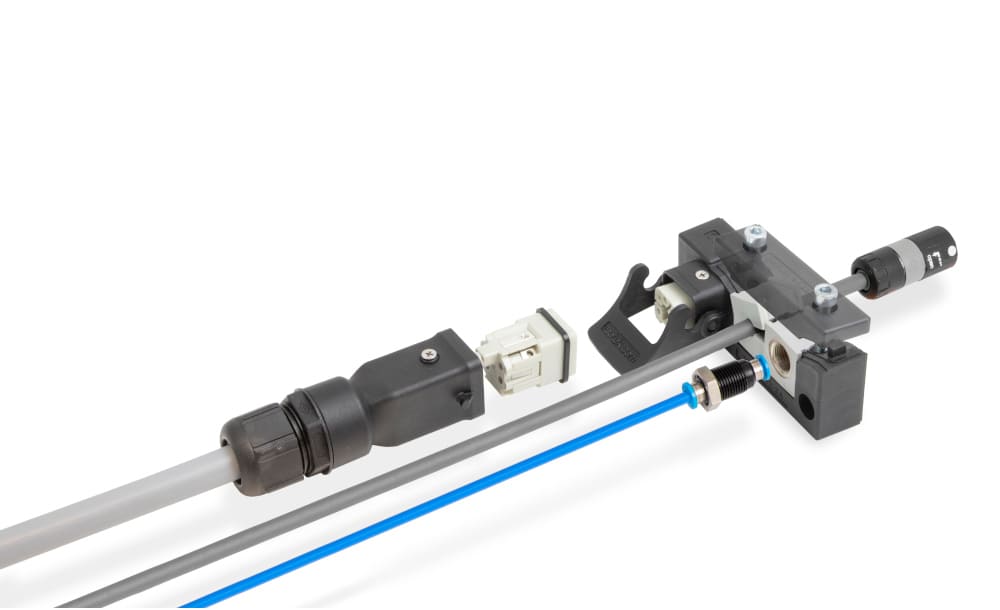

icotek’s new Modular Interface System (MIS) brings together cable management and industrial connector integration in a single, space-saving design. At its core is a split cable entry that also allows 3A or 4A connectors to be built directly into the frame, with the system supporting both icotek inserts and equivalents from a wide range of other manufacturers.
Through the cable entry itself, cables with or without connectors — from 1 to 15 mm in diameter — can be inserted, sealed and strain-relieved in line with DIN EN 62444. 3A or 4A industrial connectors then attach straight onto the same frame.
What’s included
A complete MIS set comprises the frame with add-on housing for the socket insert, a cover, two screws and a locking element, plus the matching counterpart: a housing for the 3A/4A pin insert together with a cable gland (M20 for 6–12 mm cables, or M25 for 13–18 mm).
The frame carries CE compliance and is designed to work across brands, including Harting, Ilme, Phoenix Contact, TE Connectivity, Weidmüller, Lapp, Amphenol, Molex and RS Pro.
Key benefits
- Compact footprint — pairing connectors with the cable entry removes the need for separate panel cut-outs, saving valuable space.
- Strong ingress protection — a back-mounted injection seal delivers IP65, a rating that holds even with double grommets fitted; adding the optional protective cover brings this down to IP54 for unused ports.
- Fast assembly — cable grommets click into the frame automatically, and once everything is in place the cover is simply screwed down while the connector locks in with a clip.
- Broad compatibility — works across numerous connector manufacturers and suits a wide range of industrial settings.
Specifications
- Cable diameter range: 1–15 mm
- Cable gland sizes: M20 (6–12 mm), M25 (13–18 mm)
- Connector sizes supported: 3A, 4A
- Protection rating: IP65, with IP54 optional
- Standards: UL Type 12, DIN EN 62444
Accessories
A protective cover is available for any unused connector positions, raising their protection level to IP54.
Bringing connector integration and cable entry together in one unit, the MIS is built for applications that need both handled cleanly and compactly — a combination that sets it apart in the market for functionality, protection and flexibility.
