For system integrators, plant constructors, and producers of embedded or edge solutions, dependable, compact industrial PCs are crucial. Common uses involve industrial automation, edge computing, and intelligent manufacturing or logistics settings – wherever reliability, extended durability, and adaptable connectivity are essential.

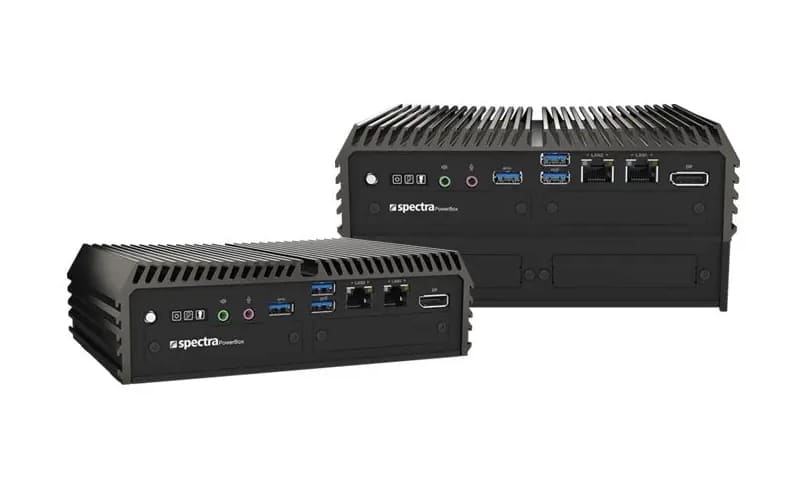

The Spectra PowerBox 230 is purpose-built to meet these criteria: a compact, fanless embedded computer that provides durability, long-term dependability, and flexible interface choices. With dimensions measuring just 185 x 131 x 56.5 mm, the PowerBox 230 offers an outstanding size-to-performance ratio. Its robust, fanless construction guarantees reliable ongoing performance in industrial settings. The wireless design and top-notch industrial parts ensure prolonged durability with minimal upkeep required
The PowerBox 230 offers extensive built-in I/O: 2× 2.5 GbE LAN, multiple USB 3.2 & 2.0 ports, RS-232/422/485 COM, and DisplayPort with 4K support. The modular design allows additional GbE LAN, high-speed USB, COM, and CAN ports to be added. For mobile scenarios, WLAN, 5G, GNSS, and two front-accessible Nano-SIM slots are available.
Two versions are available for different environments: a standard version (0–45 °C) and a Wide-Temp version (-40–70 °C) for harsh industrial conditions. With a wide-range power input (9–48 VDC), optional external power supplies (60 or 120 W) can also be used.
Key Benefits of the Spectra PowerBox 230:
- Ultra-compact: only 185 × 131 × 56.5 mm – ideal for installation in machines, robot arms, or EV charging stations.
- Robust & reliable: fanless, wireless, jumperless, low maintenance – optimized for continuous operation.
- High performance: Intel Alder Lake-N Quad-Core CPU with up to 16 GB DDR5 RAM, only 12 W TDP.
- Versatile interfaces: 2× 2.5 GbE, USB 3.2/2.0, COM ports, DisplayPort (4K), modularly expandable with LAN, USB, COM, CAN.
- Wireless-ready: WLAN, 5G, GNSS; two Nano-SIM slots for mobile applications.
- Flexible deployment: standard (0–45 °C) and Wide-Temp (-40–70 °C) versions.
- Reliable power supply: 9–48 VDC wide-range input, optional 60/120 W external power supplies.
- Wide range of applications: Industry 4.0, edge computing, logistics, manufacturing automation, smart buildings, EV charging stations.
